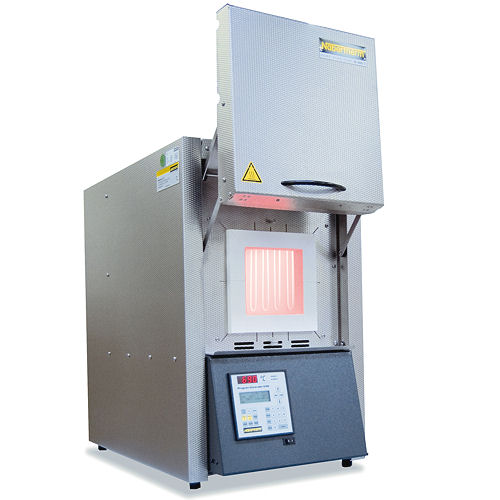

Designed as tabletop models, these compact high-temperature furnaces have a variety of advantages. The first-class workmanship using high-quality materials, combined with ease of operation, make these furnaces all-rounders in research and the laboratory. These high-temperature furnaces are also perfectly suited for the sintering of technical ceramics, such as zirconium oxide dental bridges.

• Tmax 1800 °C
• Tmax in 75 minutes
• 3.6 kW single fase (230V)
• Inside dim: 90 x 150 x 150 mm = 2 ltr
• Outside dim: 470x630x760(+260 for the liftdoor) mm
• High-quality molybdenum disilicide heating elements
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2
• Compact design with lift door, opening upwards
• Adjustable air inlet
• Exhaust air opening in the roof
• Type B thermocouple
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

• Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
• Square saggar for charging of up to three layers
• Protective gas connection to purge with non-flammable protective or reaction gases
• Manual or automatic gas supply system
• Process control and documentation via VCD software package for monitoring, documentation and control
